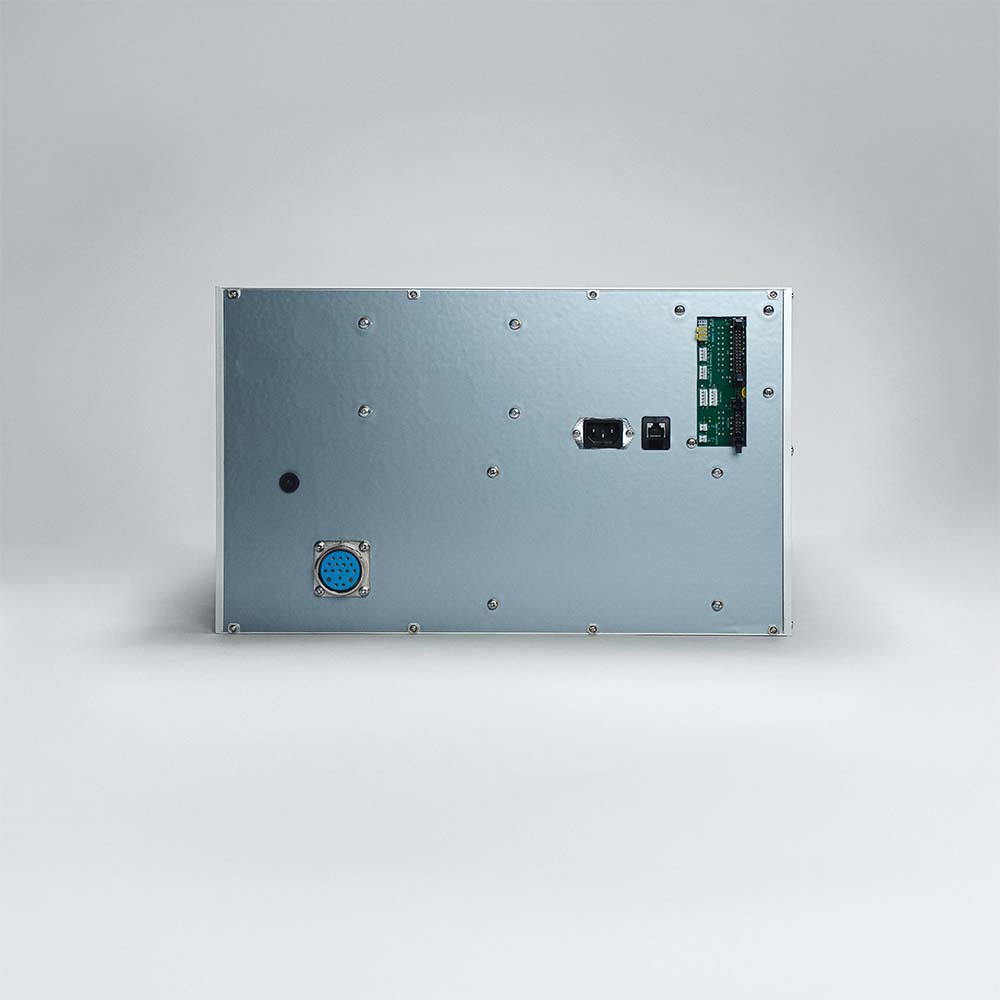

SYNOR 5000-R
Ideal for test benches or integration into larger systems
Expandable using SYNOR 5000‑CS bays
DIN 41612 connector outputs
Large selection of switching cards
Ethernet & PLC interfaces
TECHNICAL SPECIFICATIONS
Test points 2 048 points (extendable)
Max switching cards 16
TEST TYPES
Continuity 1 mΩ to 2kΩ
Insulation 50 kΩ to 5GΩ
Dielectric strength adjustable 500 μA to 10 mA
Functionnal up to 2120 VDC / 1500 VAC
Components Diodes, Diodes ZENER, resistors, capacitors...
Dimensions
Height 265 mm
Width 437 mm
Depth 485 mm
