SYNOR 5000-C
Fully customizable and modular system

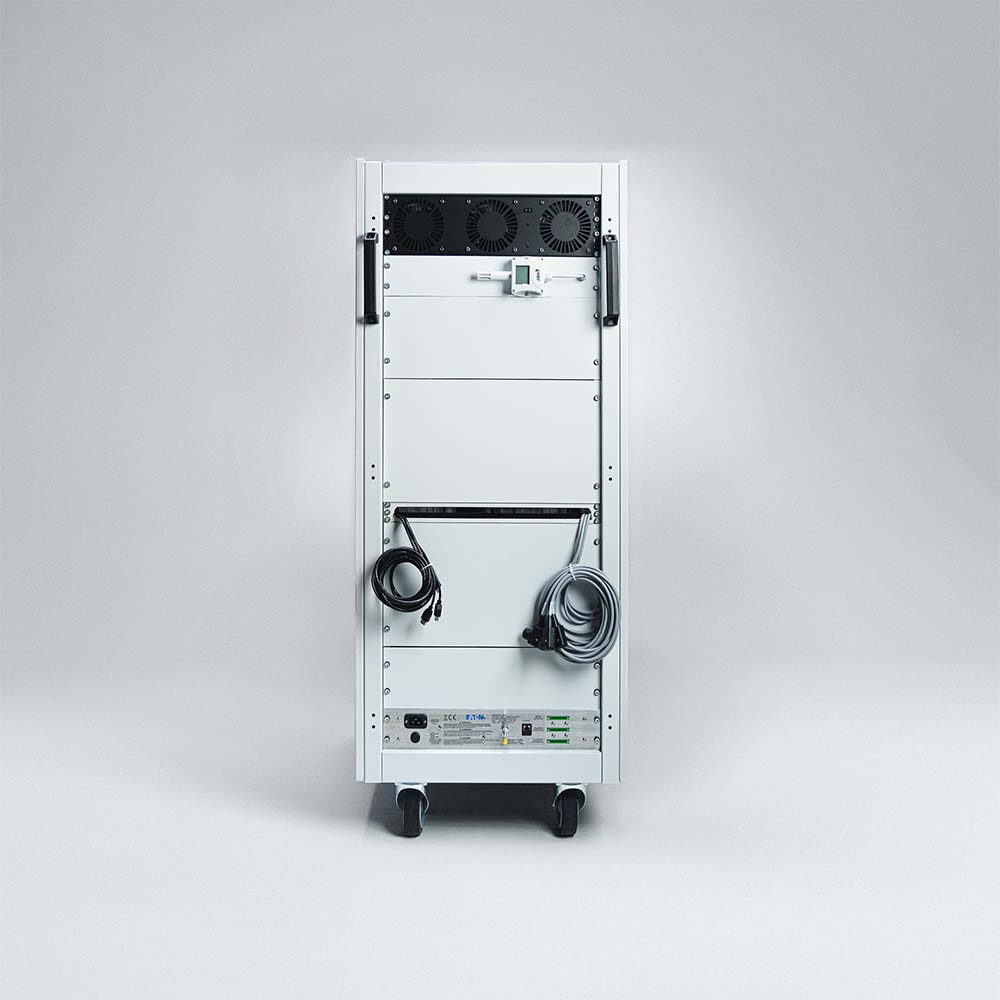

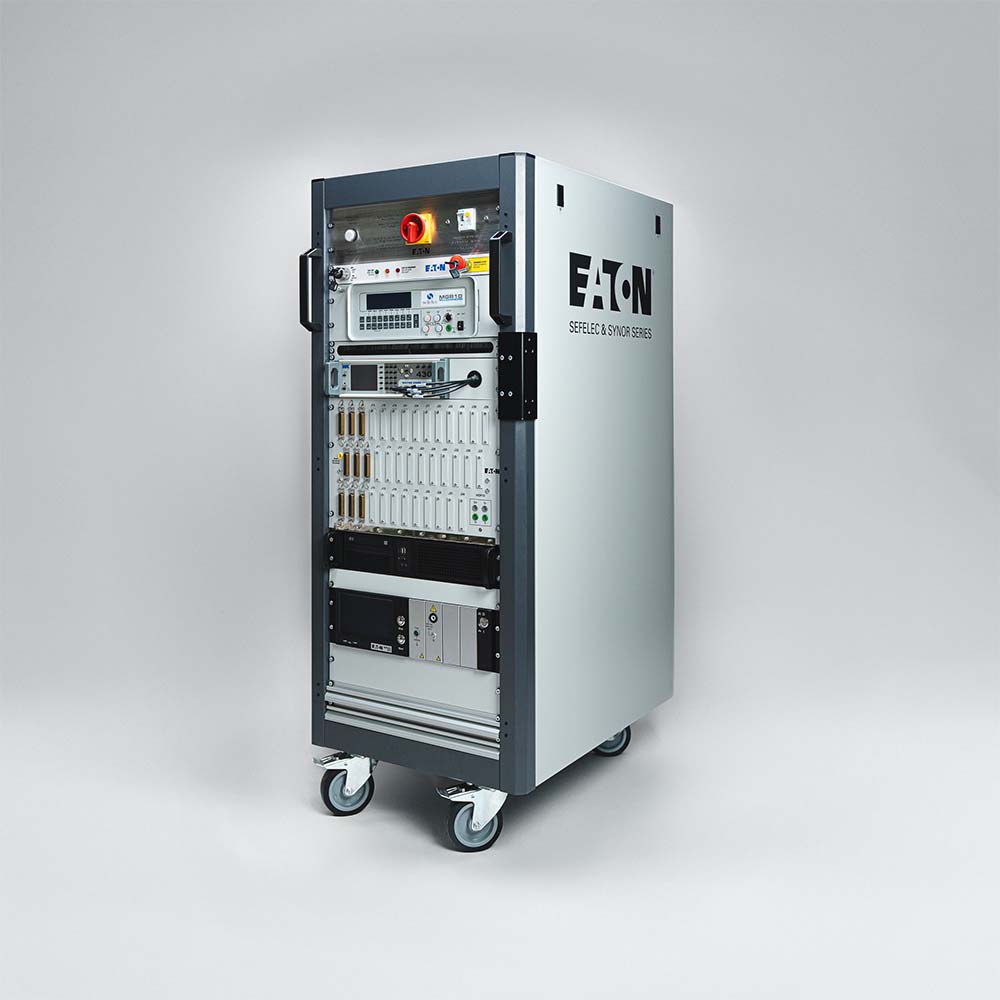

Tester integrated in a mobile rack
Expandable test points with SYNOR 5000‑CS bays
Available in 4 sizes: 13U, 18U, 27U, 36U
Operates with built‑in or remote PC
DIN 41612 standard connectors
Wide card selection
Ethernet & PLC interfaces
TECHNICAL SPECIFICATIONS
Test points 11 264 points (extendable)
Max switching cards 88
TYPES DE TESTS RÉALISÉS
Continuity 1 mΩ to 2kΩ
Insulation 50 kΩ to 5GΩ
Dielectric strength adjustable 500 μA to 10 mA
Functionnal up to 2120 VDC / 1500 VAC
Components Diodes, Diodes ZENER, resistors, capacitors...
Dimensions
Height Baies de 13U | 18U | 27U |36U
Width 600 mm
Depth 800 mm
Data sheets
