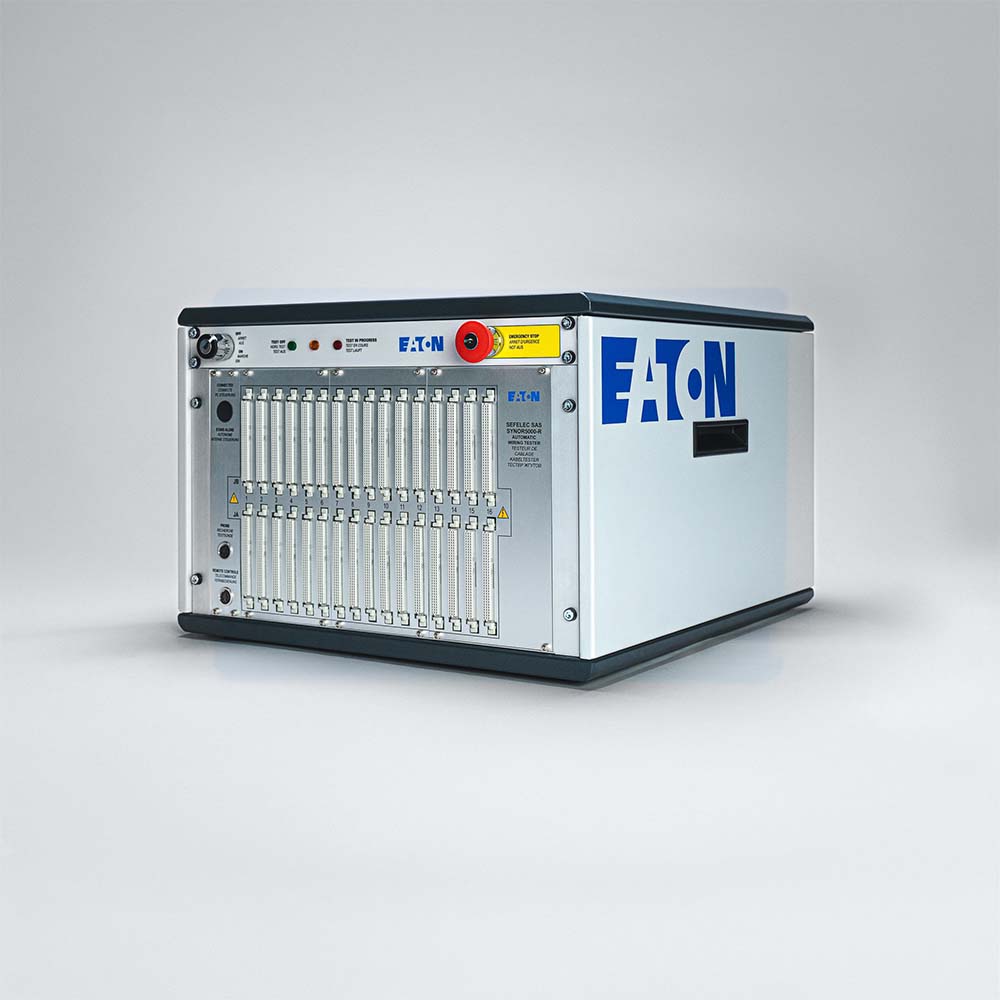

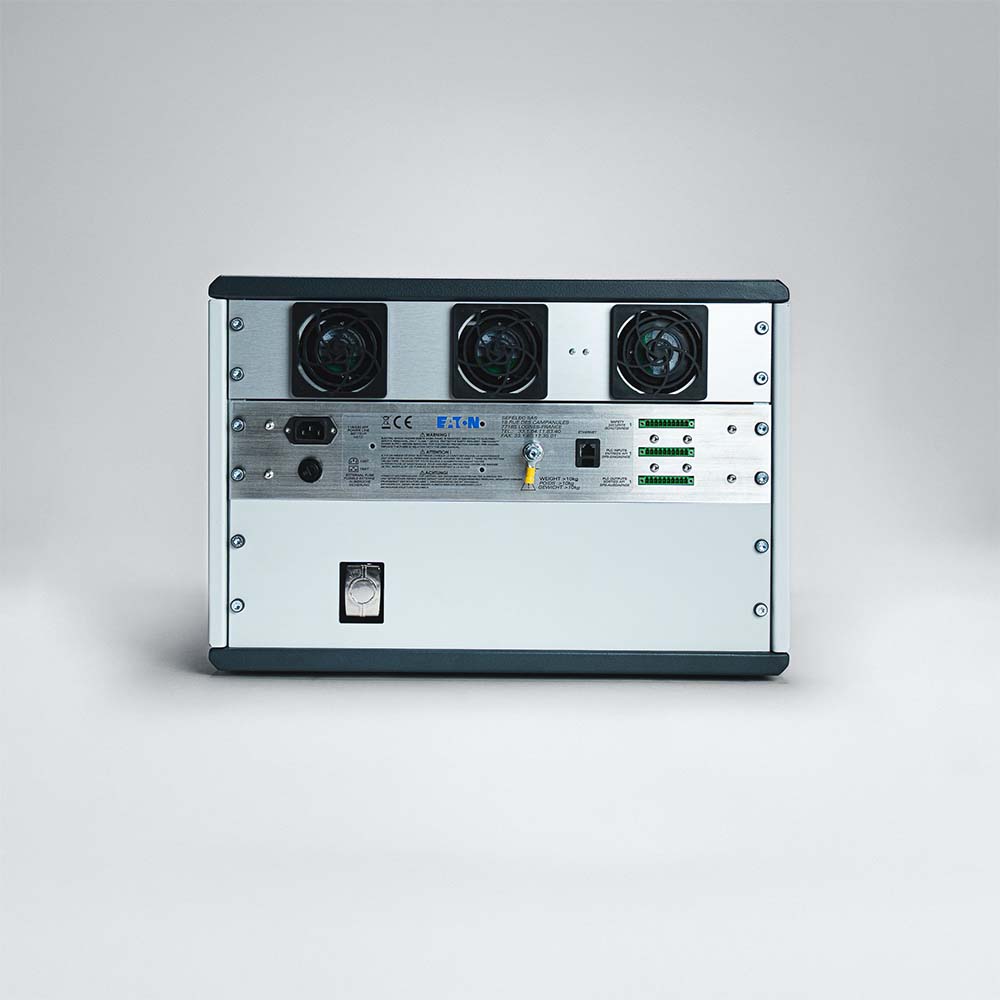

SYNOR 5000-H
Automatic tests performed in microseconds
Increased productivity and traceability
Portable, compact, and standalone in a metal enclosure (operates with or without a PC)
3U 19” rack‑mountable
Wide choice of switching cards
Customizable output connectors (DIN 41612 standard)
Ethernet & PLC interfaces
TECHNICAL SPECIFICATIONS
Test points 2 048 points (extendable)
Max switching cards 16
TEST TYPES
Continuity 1 mΩ to 2kΩ
Insulation 50 kΩ to 5GΩ
Dielectric strength adjustable 500 μA to 10 mA
Functionnal up to 2120 VDC / 1500 VAC
Components Diodes, Diodes ZENER, resistors, capacitors...
Dimensions
Height 375 mm
Width 520 mm
Depth 560 mm
