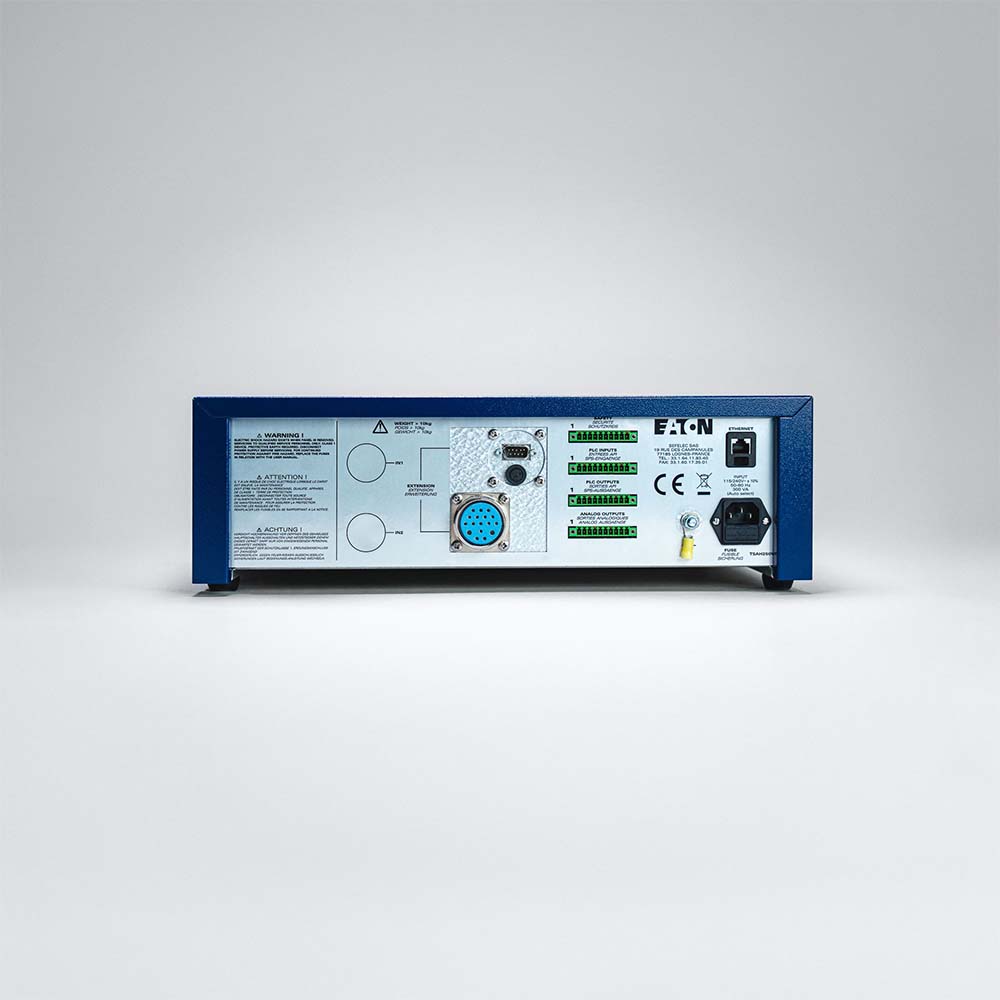

SYNOR 5000-P
- Automatic tests performed in microseconds
- Increased productivity and traceability
- Portable, compact, and standalone in a metal enclosure (operates with or without a PC)
- 3U 19” rack‑mountable
- Wide choice of switching cards
- Customizable output connectors (DIN 41612 standard)
- Ethernet & PLC interfacest, the RCP2A also allows measurement sequences to be recorded directly in Excel.
TECHNICAL SPECIFICATIONS
Test points 384 points (non-extendable)
Max switching cards 3
TEST TYPES
Continuity 1 mΩ to 2kΩ
Insulation 50 kΩ to 5GΩ
Dielectric strength adjustable 500 μA to 10 mA
Functionnal up to 2120 VDC / 1500 VAC
Components Diodes, Diodes ZENER, resistors, capacitors...
Dimensions
Height 131 mm
Width 450 mm
Depth 500 mm
