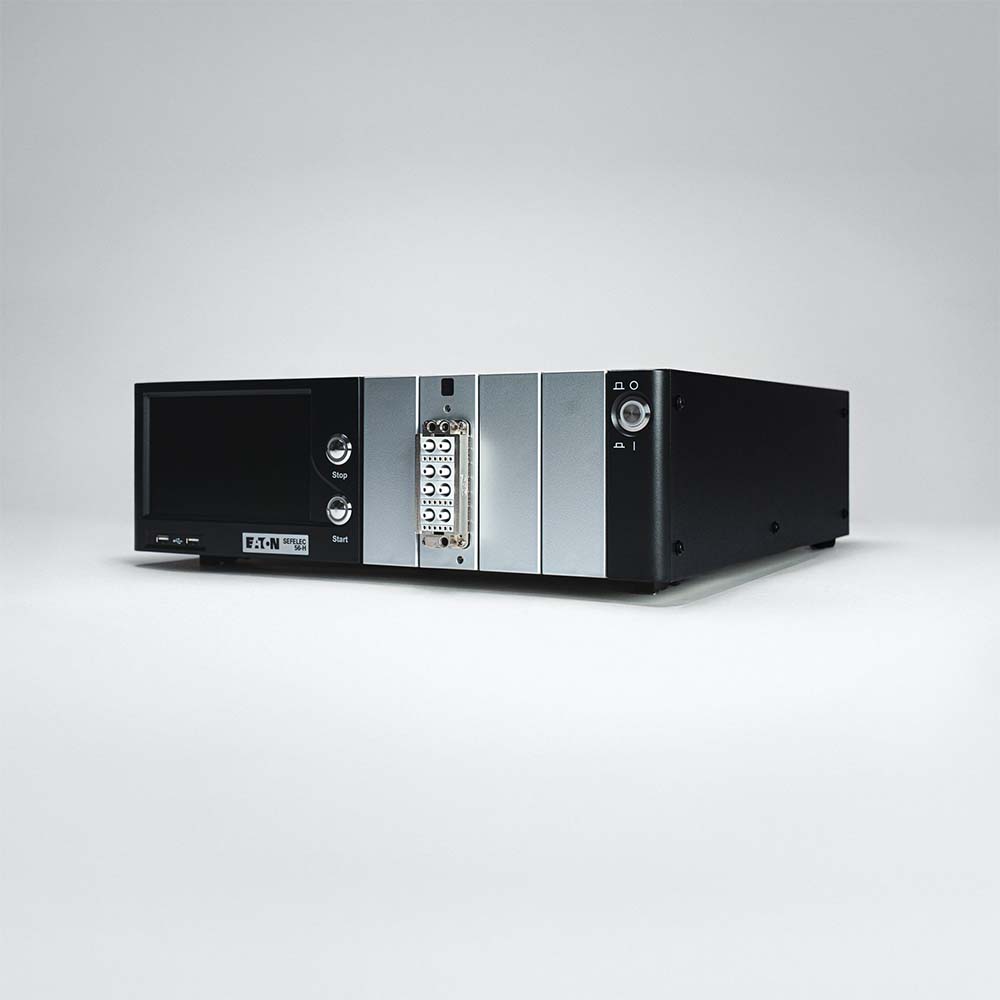

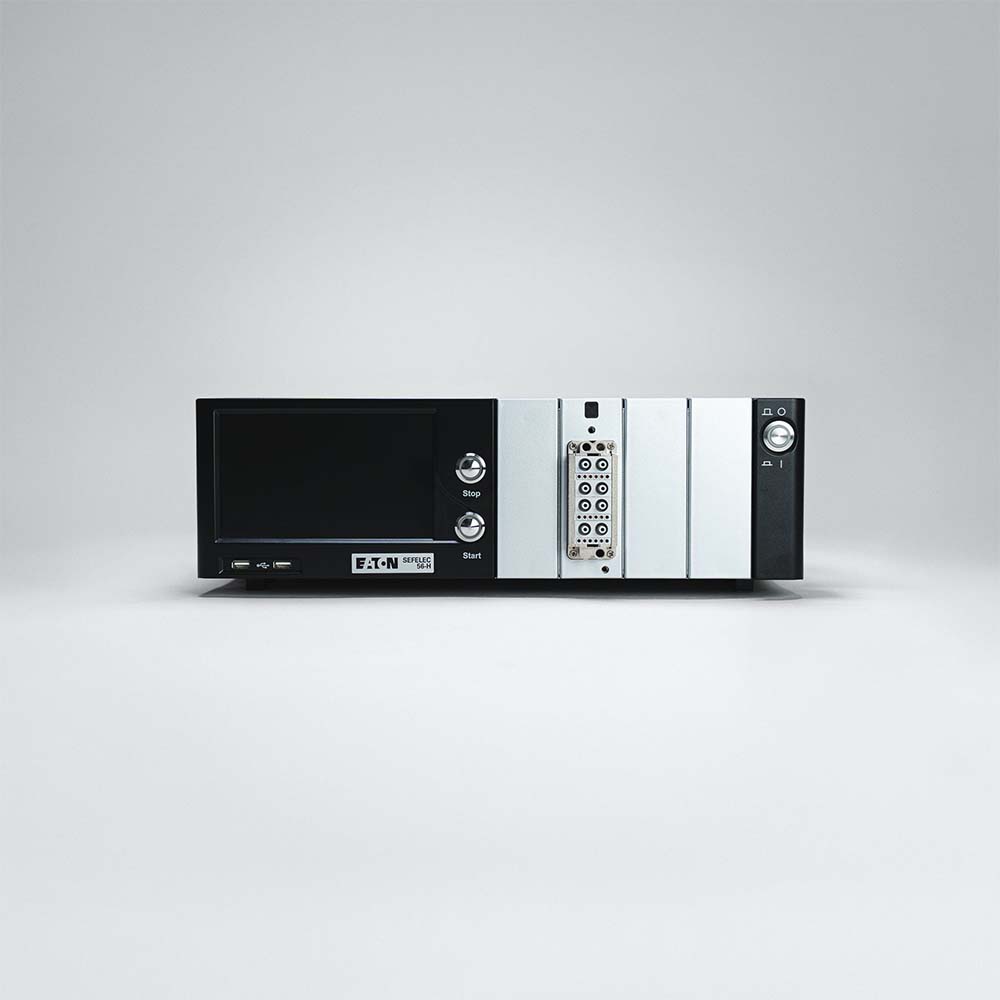

Internal scanner option
The SEFELEC 5X Internal Scanner Option automates switching of high‑voltage and/or high‑current test points.
Compact and versatile, it integrates easily into a production line or a test bench.
Each channel is fully independent: channels can be isolated or networked depending on the required test architecture. This ensures maximum flexibility across all test scenarios.
TECHNICAL SPECIFICATIONS
Number of channels 4 or 8 hight voltage / hight current
Max voltage 5kVAC 500VA and 6kVDC
Available switching modules SEFM-8IHV ou SEFM-4IHV SEFM-4IHVHC
TEST TYPES
Ground continuity 0 à 1Ω <32A AC MAX.
Insulation >10GΩ under 1000 VDC
Dieletric strength 5 kVAC 500 VA and 6 kVDC
Dimensions
Height 131 mm
Width 440 mm
Depth 455 mm
