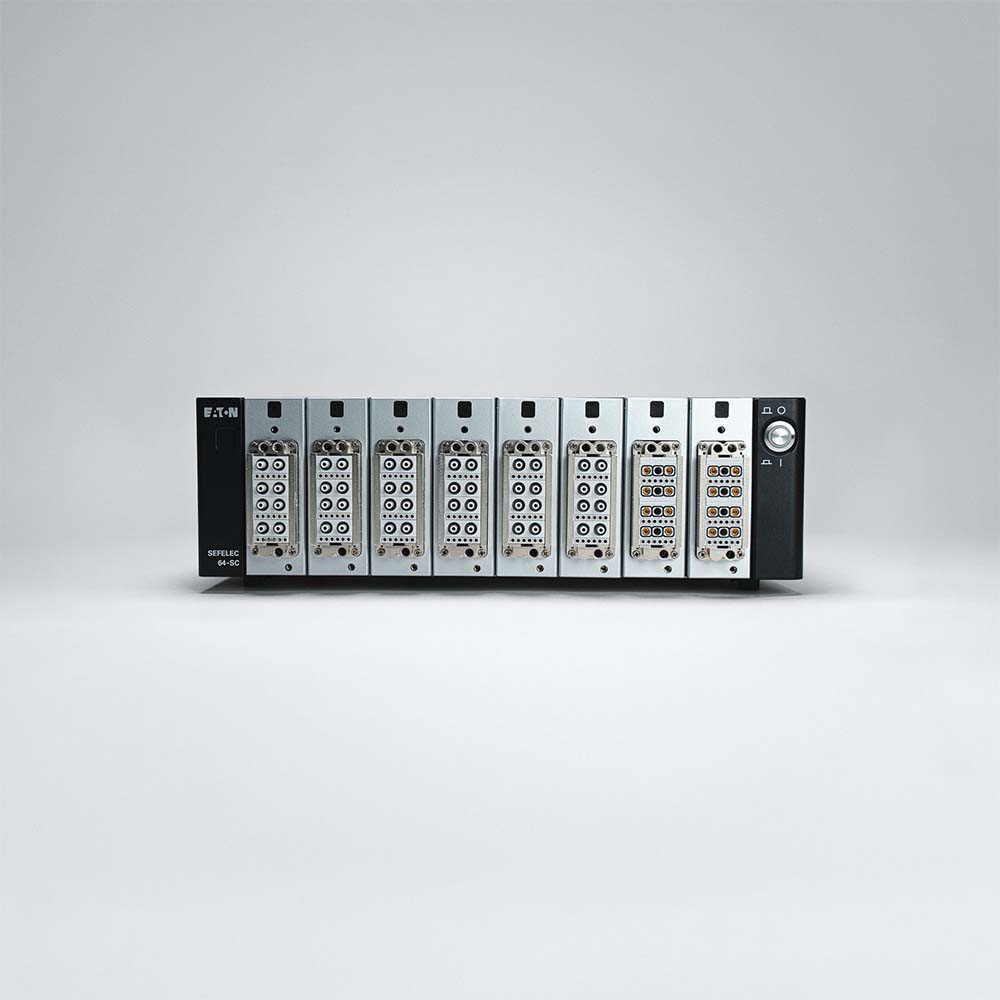

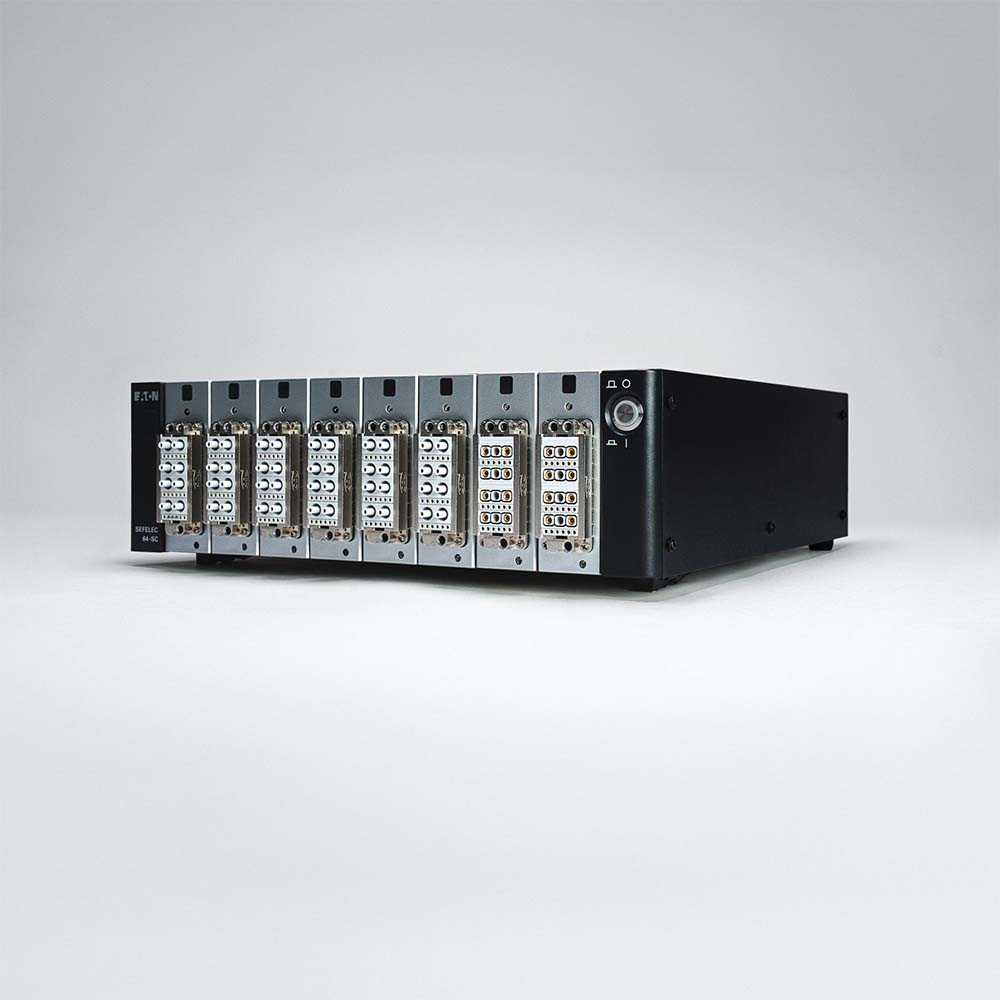

SEFELEC 64-SC
The SEFELEC 64‑SC Scanner automates high‑voltage and/or high‑current switching.
Its high channel count (up to 512) and strong performance make it ideal for production lines or test benches.
Each channel is fully independent and can be isolated or networked, providing maximum configuration flexibility.
TECHNICAL SPECIFICATIONS
Number of channels 4 or 8 hight voltage / hight current
Max voltage 5kVAC 500VA and 6kVDC
Available switching modules SEFM-8EHV & SEFM-8EHVHO SEFM-8EHC
TEST TYPES
Ground continuity 0 à 1Ω <32A AC max.
Insulation from 200 GΩ to 1kVDC
Dieletric strength 5 kVAC 500 VA and 6 kVDC
Dimensions
Height 131 mm
Width 440 mm
Depth 455 mm
