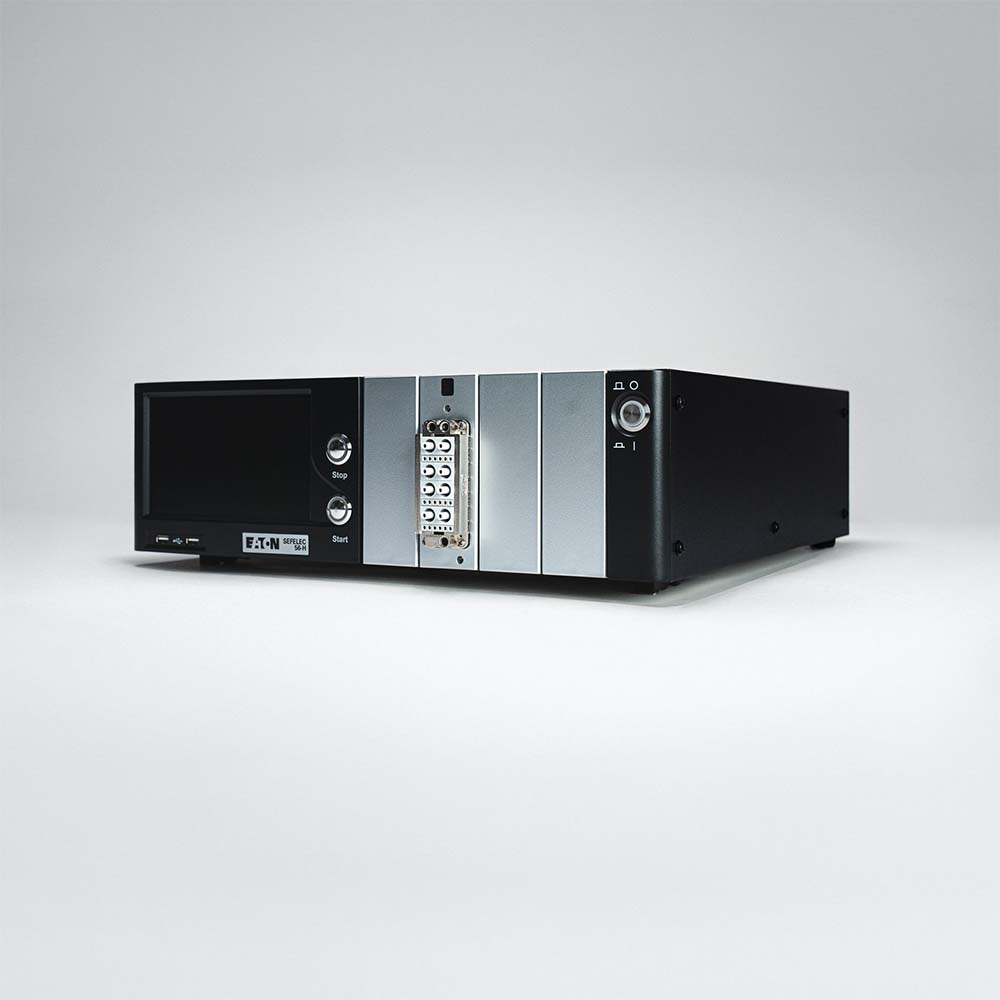

SEFELEC 506-H
The new‑generation SEFELEC 506‑H hipot tester is a single‑function device designed to perform high‑voltage tests.
It is built on an architecture combining an ARM Dual‑Core processor with a DSP, ensuring optimal stability and repeatability of measurements. Its high accuracy and fast execution make it perfectly suited for production quality control as well as incoming inspection.
This instrument can also be connected to our SYNOR 5000 automatic cable testers to meet your extended testing and measurement requirements.
Maximum AC test voltage 5 kV 500 VA
Maximum DC test voltage 6 kV
Current range 0-100 mA
Detection mode I max & Delta I
HMI (Human‑Machine Interface) TFT Tactile
Communication interfaces Ethernet - RS232 - USB - API - Option GPIB
Height 131 mm
Width 440 mm
Depth 455 mm
