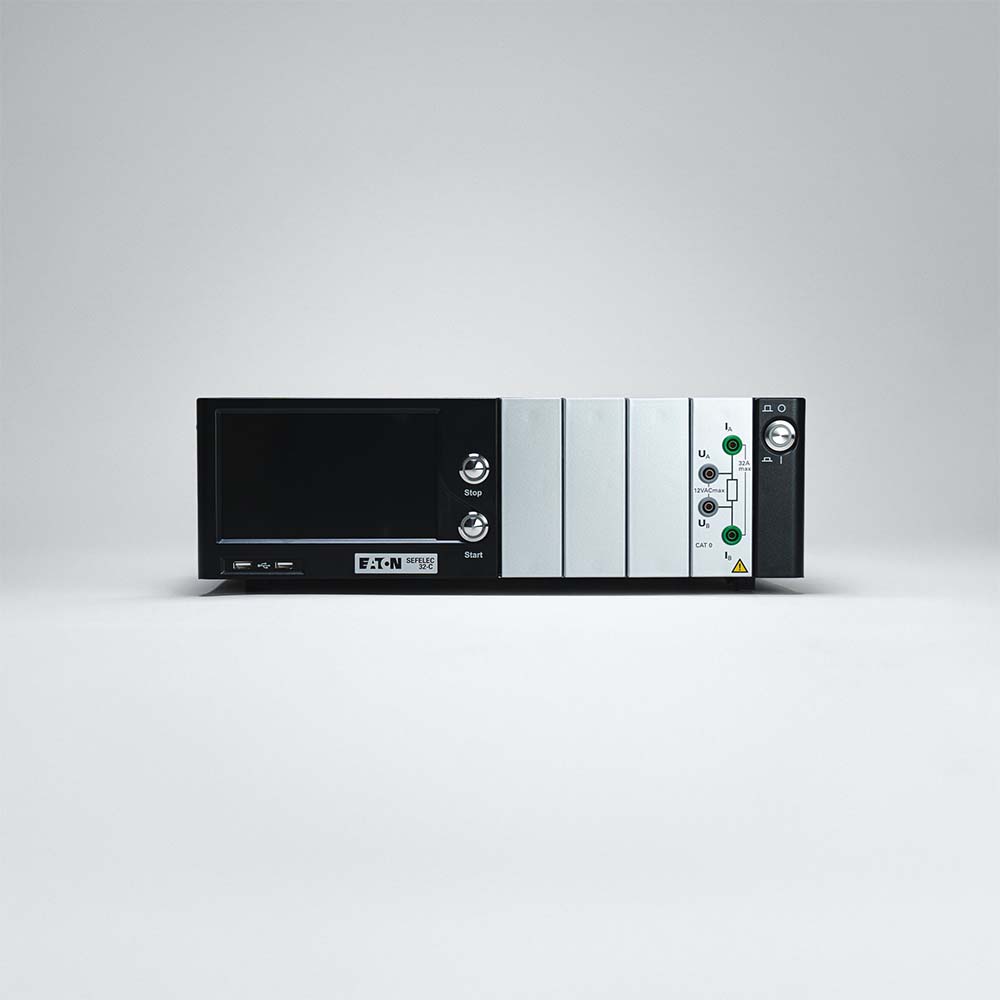

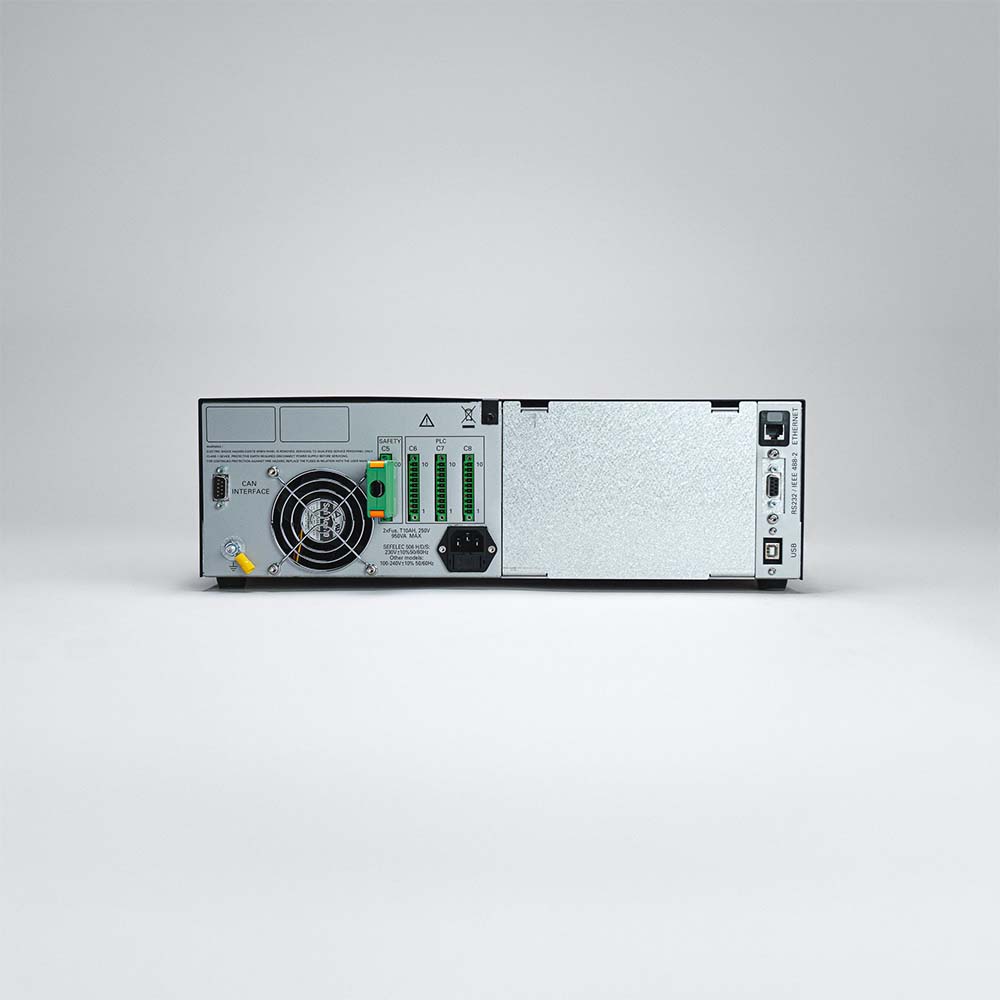

SEFELEC 32-C
The SEFELEC 32‑C is a new‑generation single‑function electrical safety tester (LVD) designed to perform protective‑earth continuity tests up to 32A (and optionally 50A).
It is built and controlled using ARM Dual‑Core and DSP‑based components, providing the operator with improved measurement stability and repeatability. Its high acurracy and fast execution make it perfectly suited for production quality control as well as incoming inspection.
TECHNICAL SPECIFICATIONS
Ground bound max. current 32 A AC (50 A AC in option)
Resistance max 100 mΩ (32 A AC) | 1Ω (5 A AC)
HMI (Human‑Machine Interface) TFT tactile
Communication interfaces Ethernet - RS232 - USB - API - Option GPIB
Dimensions
Height 131 mm
Width 440 mm
Depth 455 mm
