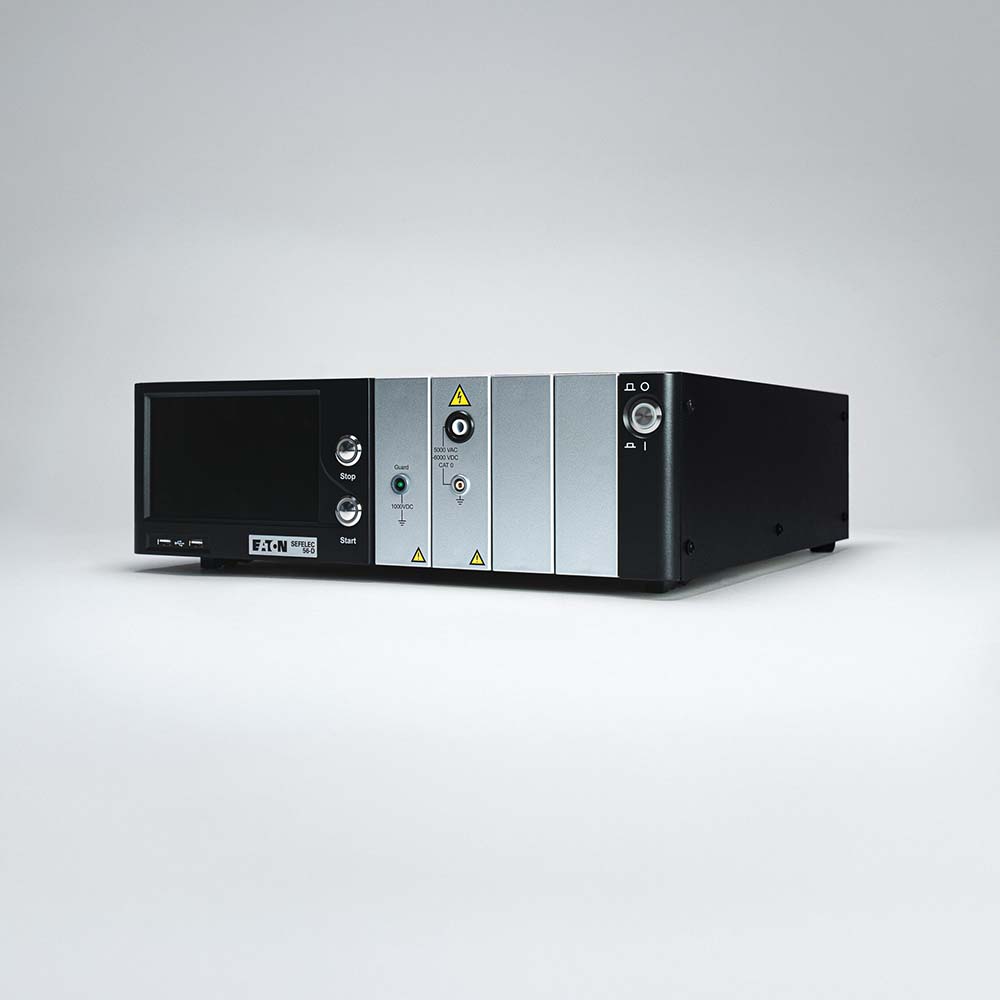

SEFELEC 56-D
The new‑generation SEFELEC 56‑D dielectric tester is a dual‑function instrument designed to perform both dielectric strength tests and insulation measurements.
It is built on an architecture combining an ARM Dual‑Core processor with a DSP, ensuring optimal stability and repeatability of measurements. Its high accuracy and fast execution make it perfectly suited for production quality control as well as incoming inspection.
This instrument can also be connected to our SYNOR 5000 automatic cable testers to meet extended testing and measurement requirements.
Dielectric test voltage 5 kVAC and 6KVDC
Dielectric test power 50 VA
Insulation measurement 50 k - 200 GΩ (ohms) (2T Ω in option)
Maximum insulation test voltage 1 000V
Communication interfaces Ethernet - RS232 - USB - API - Option GPIB
Height 131 mm
Width 440 mm
Depth 455 mm
